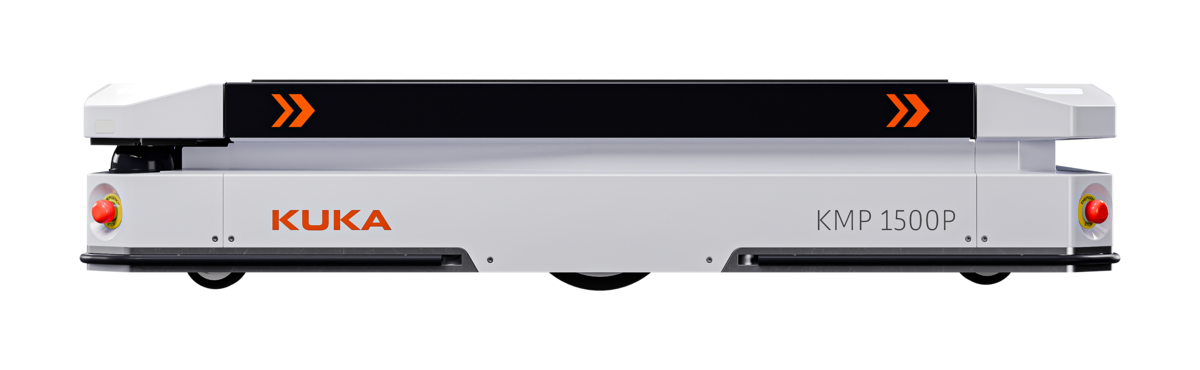

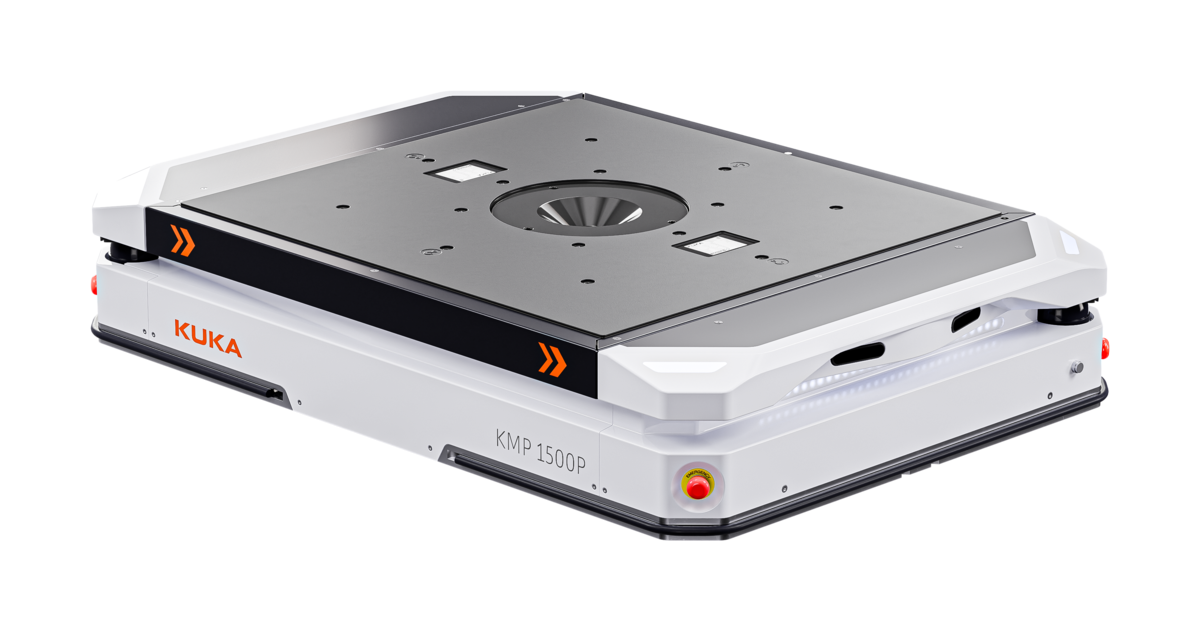

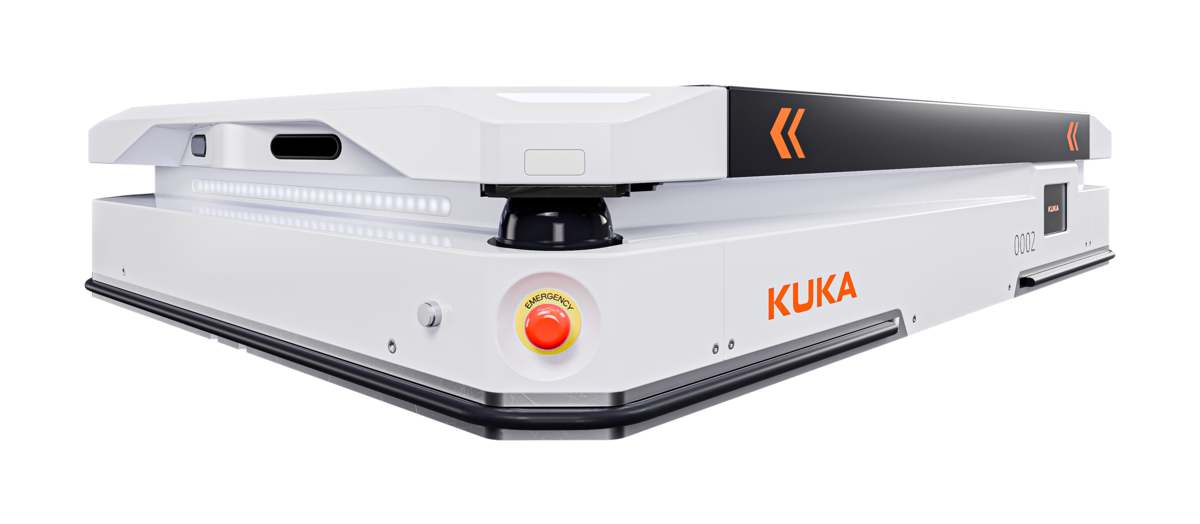

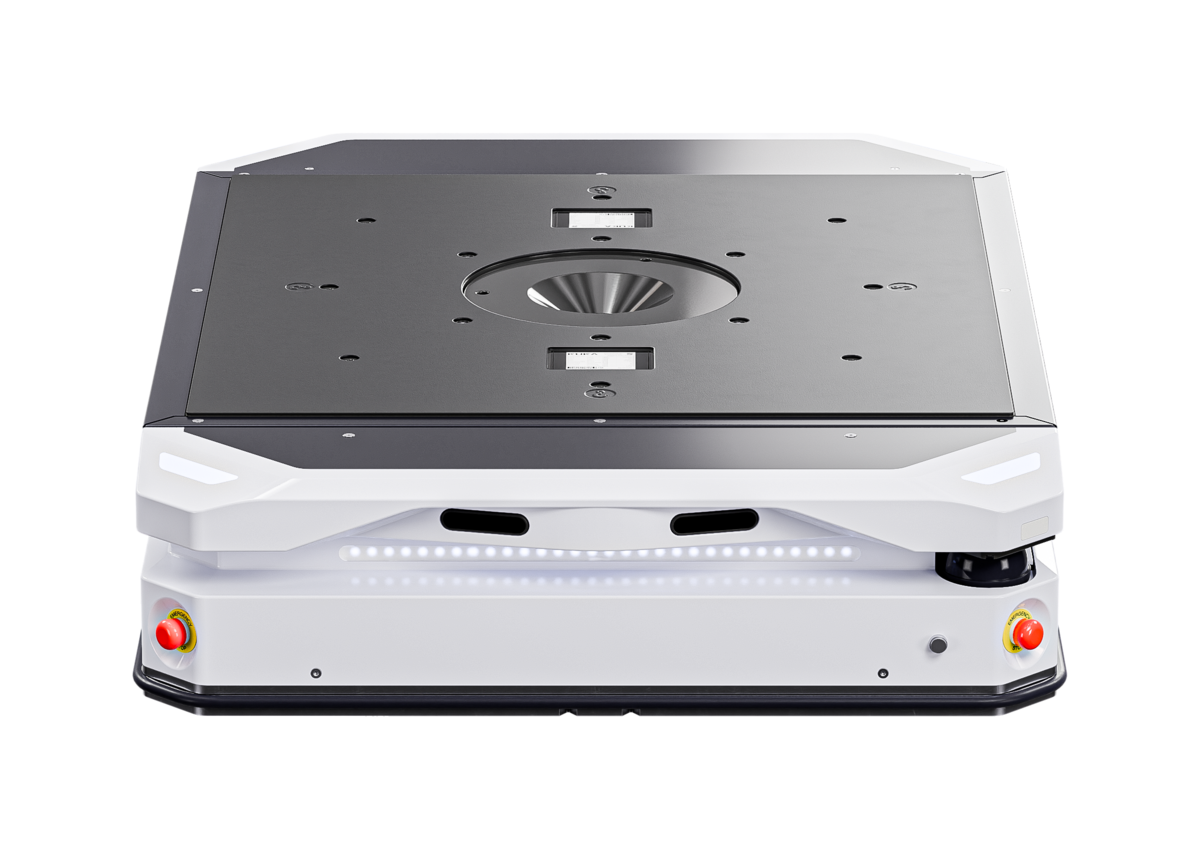

KUKA KMP 1500P-EU-D – 1,500 kg AMR Platform
KUKA KMP 1500P-EU-D diffDrive baseVersion is an autonomous mobile robot (AMR) platform with a rated payload of up to 1,500 kg, designed for goods and material transport in production and internal logistics environments.
The KMP 1500P-EU-D measures 1,300 × 900 × 263 mm, has a maximum speed of 1.8 m/s and provides 10 mm positioning accuracy. The platform features a 60 mm lift height and uses a Lithium iron phosphate (LiFePO4) battery with a maximum operating time of up to 10 hours.
Key Specifications of KMP 1500P-EU-D
- Rated payload: 1,500 kg.
- Weight: 260 kg.
- Dimensions: 1,300 × 900 × 263 mm.
- Maximum speed: 1.8 m/s.
- Positioning accuracy: 10 mm.
- Lift height: 60 mm.
- Maximum operating time: 10 h.
- Lithium iron phosphate (LiFePO4) battery.
- IP54 protection rating according to IEC 60529.
Up to 1,500 kg Payload
The KMP 1500P-EU-D has a rated payload of up to 1,500 kg, supporting automated transport tasks involving heavy goods and materials in production environments.
With this payload capacity, the KMP 1500P-EU-D is designed for automated transport tasks involving loads of up to 1.5 tons.
Compact Platform and Lifting Capability
The KMP 1500P-EU-D measures 1,300 × 900 × 263 mm and has a weight of 260 kg.
The platform provides a 60 mm lift height, supporting transport applications that require loads to be lifted during operation.
Differential Drive and Mobility
The KMP 1500P-EU-D uses differential drive technology and provides a maximum speed of 1.8 m/s.
The platform provides 10 mm positioning accuracy for automated transport tasks.
Operating Conditions
The KMP 1500P-EU-D features an IP54 protection rating according to IEC 60529. The robot can operate at ambient temperatures from 0 °C to 45 °C and air humidity levels from 10 % to 90 %.
During storage or transportation, the device can withstand ambient temperatures from -20 °C to 50 °C.
The platform has a sound level of 75 dB(A).
LiFePO4 Battery and Up to 10 Hours of Operation
The KMP 1500P-EU-D uses a Lithium iron phosphate (LiFePO4) battery and provides a maximum operating time of up to 10 hours.
This specification supports extended automated transport tasks in production and internal logistics environments.
KMP 1500P-EU-D and KMP 1500P-E-D
The KMP 1500P-EU-D and KMP 1500P-E-D are both part of the KMP 1500P series and share the same key specifications for payload, dimensions, maximum speed, lift height, operating time and battery type.
The clearly identified difference in the technical data available for the two model codes is the platform weight: the KMP 1500P-EU-D weighs 260 kg, while the KMP 1500P-E-D weighs 270 kg.
For other differences between the two configurations, the corresponding KUKA technical documentation should be consulted before making conclusions about hardware or functional differences.
Applications
- Goods transport within factories.
- Material transport for internal logistics.
- Automated transport of loads up to 1,500 kg.
- Automated transport tasks in production environments.
KUKA KMP 1500P-EU-D
With a payload of 1,500 kg, dimensions of 1,300 × 900 × 263 mm, a maximum speed of 1.8 m/s, a 60 mm lift height and up to 10 hours of operating time, the KUKA KMP 1500P-EU-D is an AMR platform for heavy-load transport in production and internal logistics environments.
PAN provides robotics and automation solutions tailored to industrial material-transport requirements.
