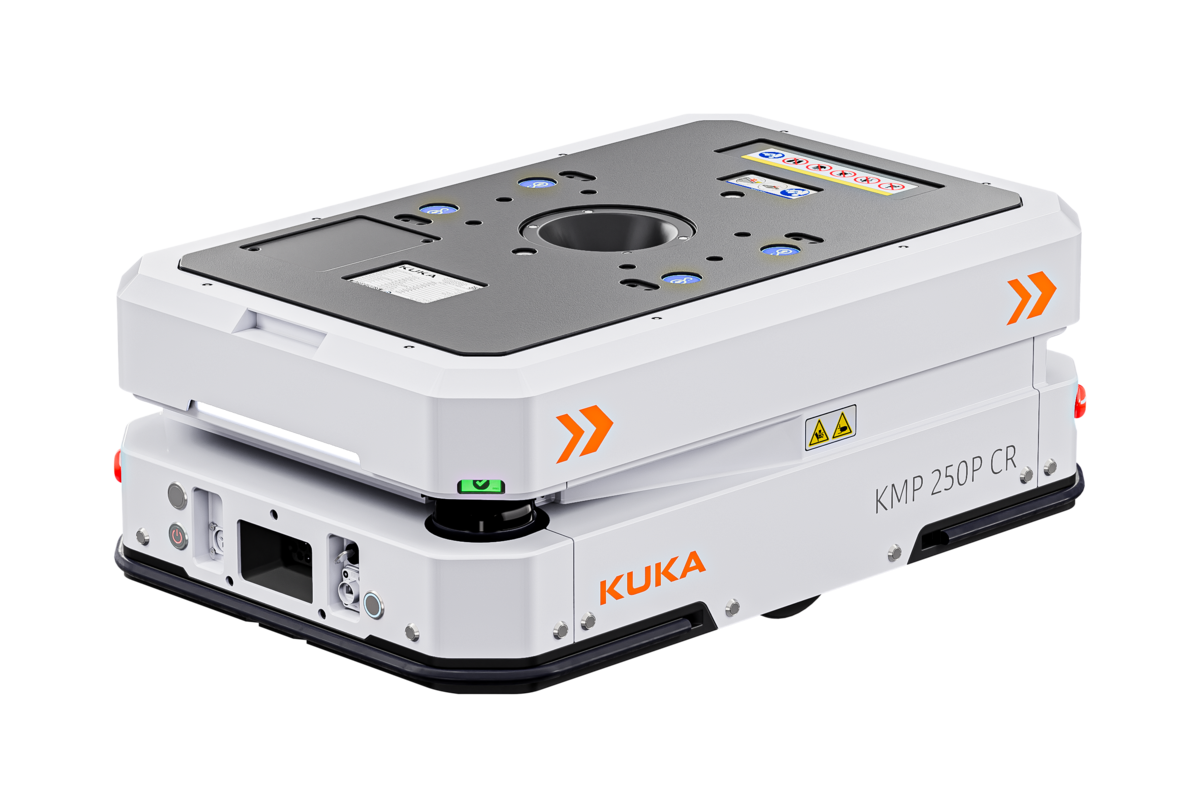

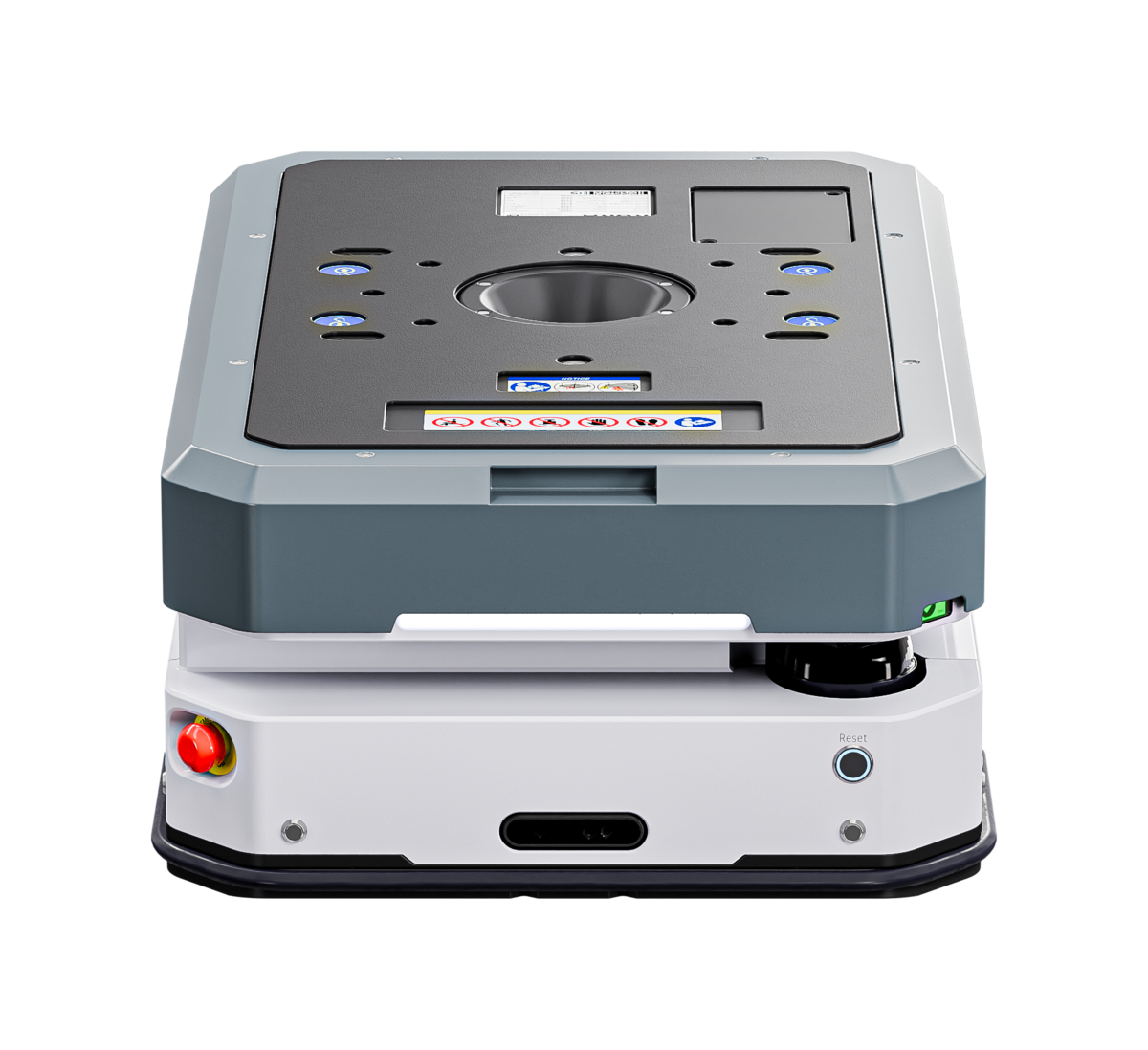

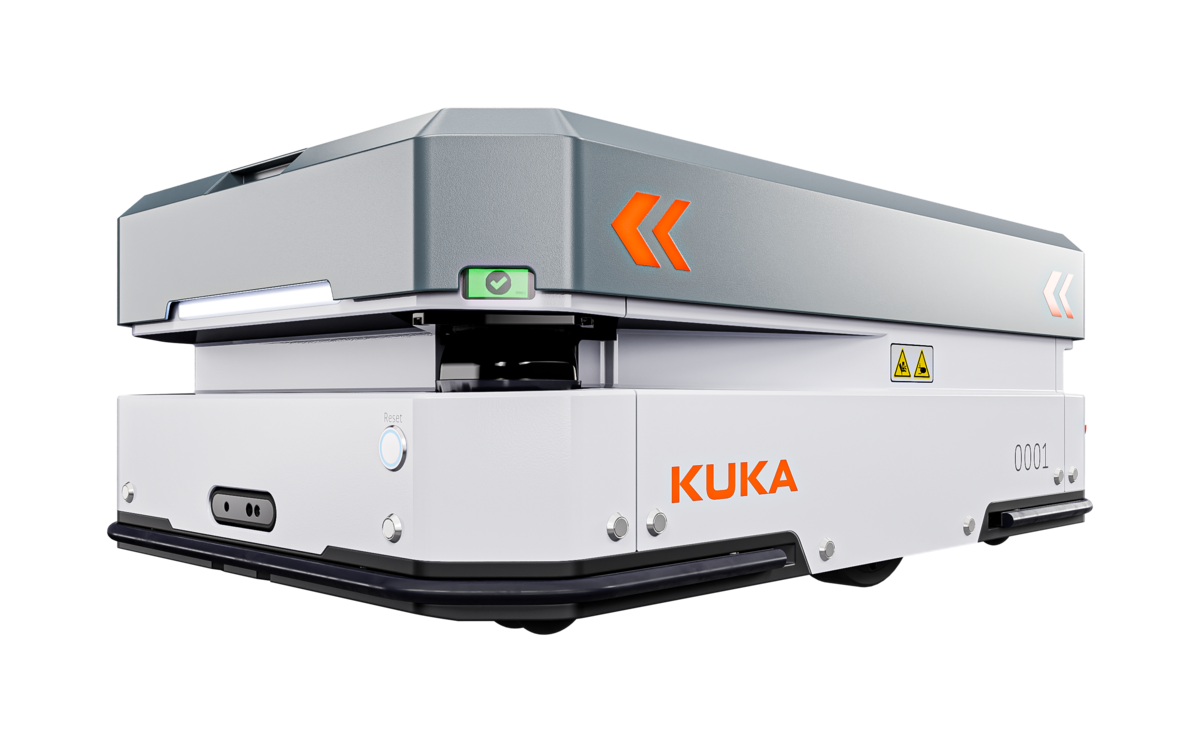

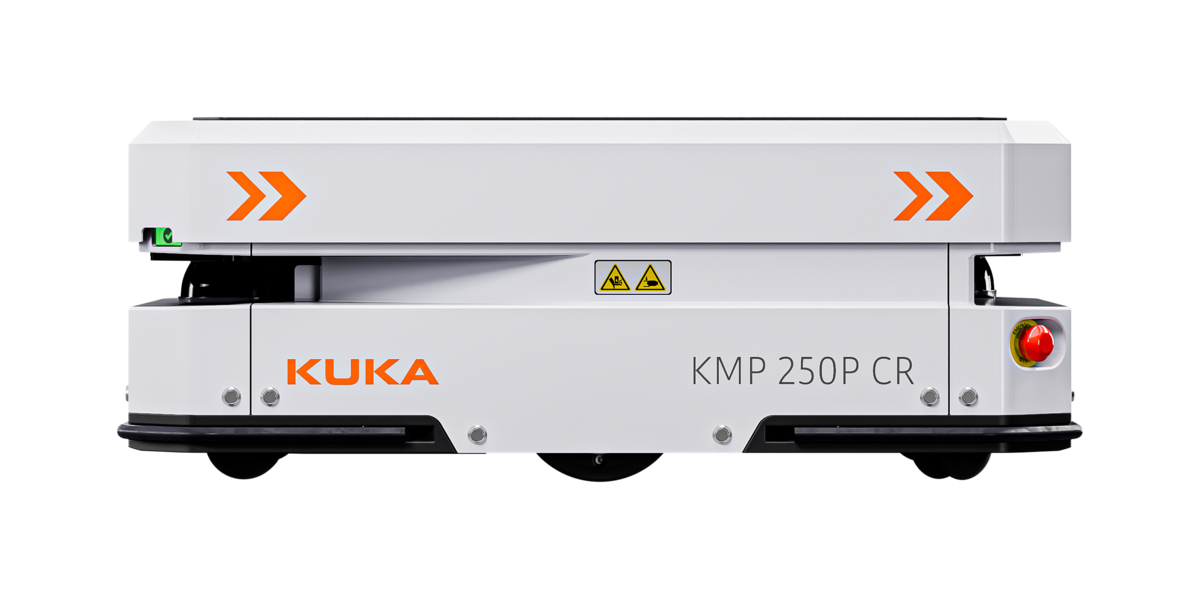

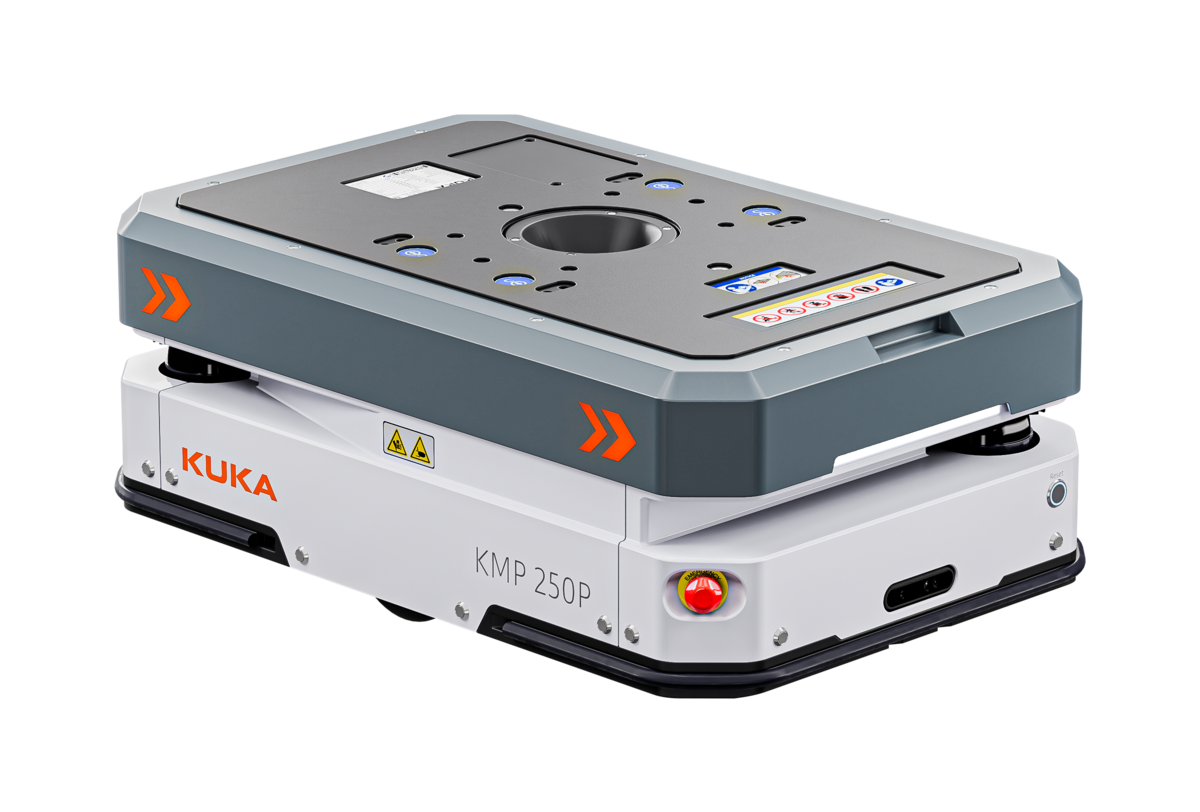

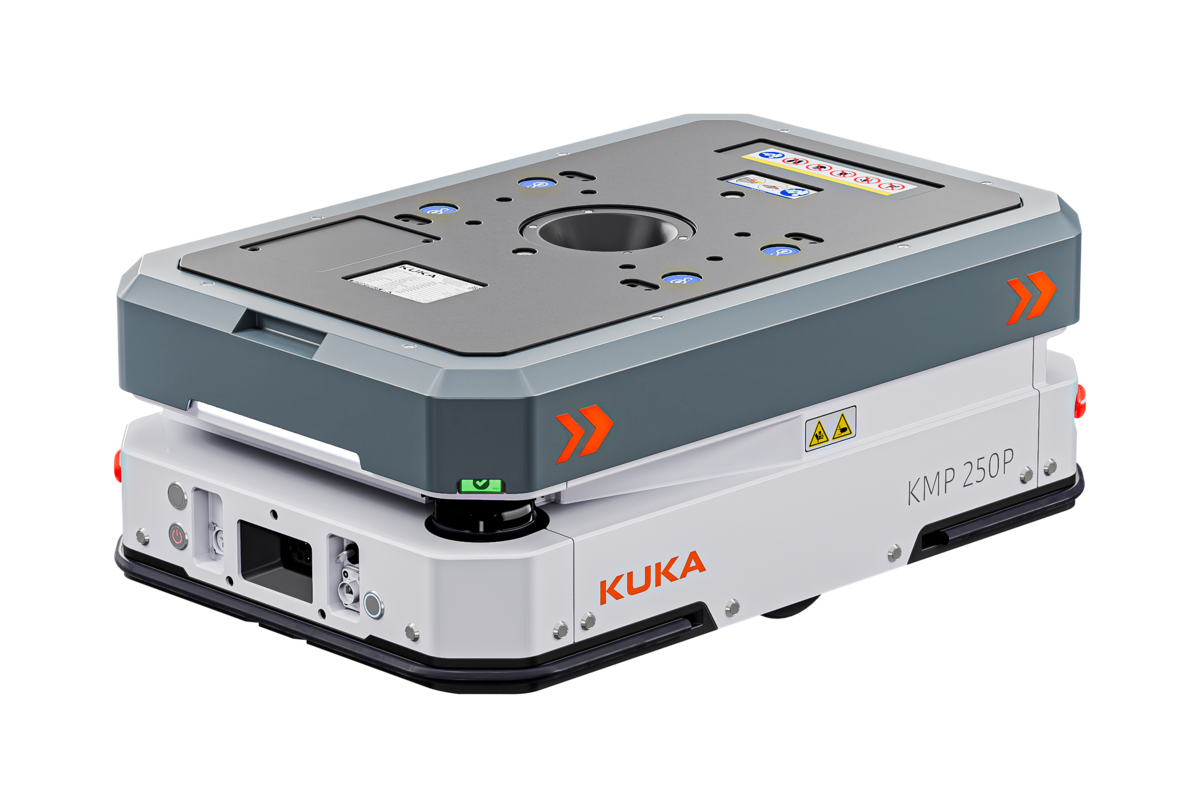

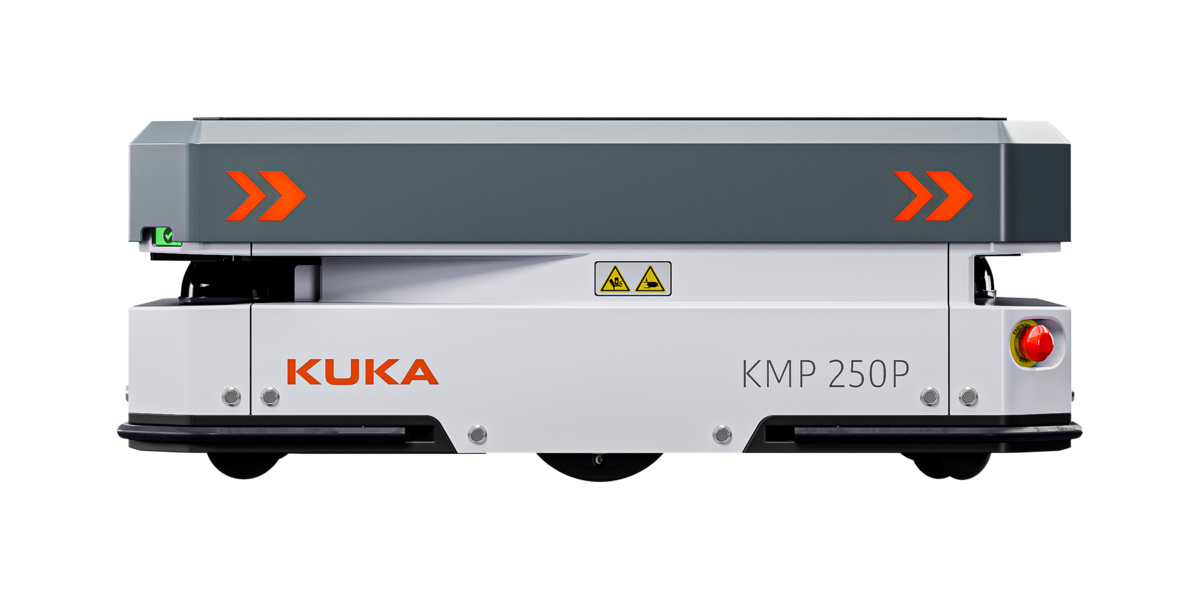

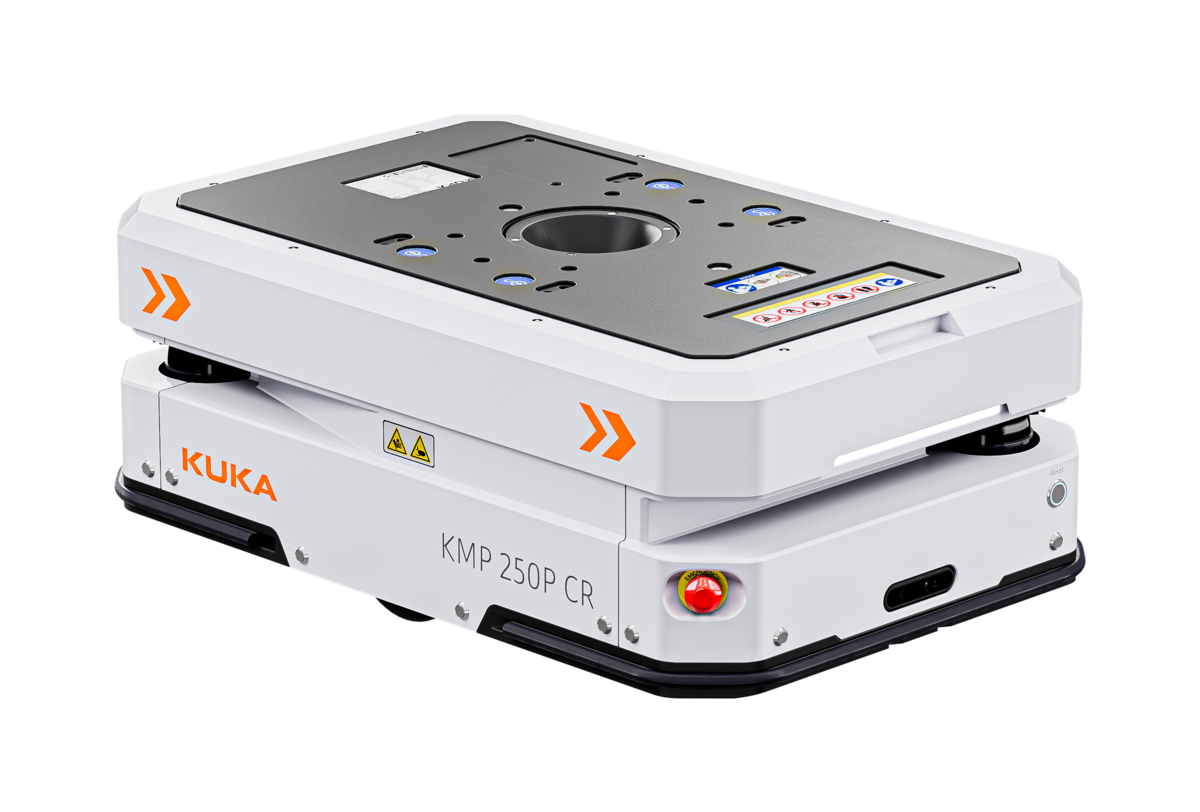

The KUKA KMP 250P-E-D diffDrive baseVersion is a compact autonomous mobile robot (AMR) designed to transport goods and components with payloads of up to 250 kg. With dimensions of only 800 × 520 × 300 mm, the KMP 250P is particularly suitable for production environments where operating space is limited.
The KMP 250P is a versatile mobile platform that combines a payload capacity of up to 250 kg with a compact design and flexible mobility. An optional lifting unit with a 60 mm stroke can further expand the robot's capabilities for automated transport and material handling applications.
The robot reaches a maximum speed of 2 m/s, provides up to 8 hours of operating time and has a charging time of 2 hours. The KMP 250P supports SLAM and QR navigation with high positioning accuracy and can be integrated with KUKA AMR Fleet and the VDA 5050 interface.
Applications
- Transporting goods and components within factories.
- Moving materials between warehouses and production areas.
- Supplying components and materials to production lines.
- Transporting goods between workstations.
- Point-to-point transportation within factories.
- Applications in confined production environments.
- Automating internal logistics and material flow.
- Applications using Cleanroom and ESD versions where required.
Key Features
Compact Design
The KMP 250P is designed for environments where floor space needs to be optimized. With dimensions of 800 × 520 × 300 mm, the robot can operate in confined production areas while making efficient use of available space.
Payload of up to 250 kg
The KMP 250P can transport goods and components with payloads of up to 250 kg. It is well suited to internal material transport tasks where a compact mobile platform is required without compromising payload capacity.
Maximum Speed of 2 m/s
The robot reaches a maximum speed of 2 m/s, supporting fast transportation between designated delivery points. Its travel speed helps reduce transportation time and improve internal logistics efficiency.
Flexible Movement with Differential Drive
The KMP 250P uses differential drive technology, allowing the robot to move forwards and backwards, turn on the spot and follow curves with a defined radius. This flexible mobility makes the platform suitable for confined production environments.
Accurate Positioning with SLAM and QR
The KMP 250P supports SLAM and QR-based positioning. Depending on the configuration, positioning accuracy can reach ±10 mm, ±1° or ±5 mm, ±0.5°. Accurate positioning supports stable and repeatable transport operations.
Optional Lifting Unit
The KMP 250P can be equipped with an optional lifting unit with a 60 mm stroke. This option expands the robot's capabilities for goods handling and allows the platform to meet different application requirements.
Up to 8 Hours of Operation
The robot provides up to 8 hours of operating time with a charging time of 2 hours. An optional inductive charging solution is also available, helping optimize energy management and robot availability.
Autonomous Navigation and System Integration
The KMP 250P supports autonomous navigation using SLAM and QR, allowing the robot to operate in a range of production environments. The platform can be integrated with KUKA AMR Fleet for robot fleet management and transport task configuration.
The platform also supports the VDA 5050 interface, facilitating integration with fleet management and coordination systems in automated environments.
Sleep Mode
The KMP 250P supports a sleep mode that allows the robot to enter an energy-saving state when operation is not required. This function helps optimize energy consumption during operation.
360-Degree Safety Protection
The KMP 250P is designed with 360-degree protection for people and machines. The robot uses two diagonally mounted laser scanners combined with 3D cameras to detect obstacles during operation.
When an obstacle is detected in the path, the robot can automatically bypass it when sufficient space is available. If safe movement is not possible, the KMP 250P can stop automatically.
- Two diagonally mounted laser scanners for obstacle detection and avoidance.
- 3D cameras for obstacle detection.
- 360-degree protection for people and machines.
- Automatic obstacle bypass when sufficient space is available.
- Automatic stopping when safe movement is not possible.
Cleanroom and ESD Versions
The KMP 250P is available in configurations designed for specific application environments, including Cleanroom and ESD versions. These configurations extend the platform's application range to production areas with specific environmental and electrostatic control requirements.
Application Solutions
Component Transport in Factories
The KMP 250P can transport components and materials between warehouses, storage areas and production lines. Automating repetitive transport tasks helps maintain a stable material flow throughout production operations.
Transportation in Confined Spaces
The compact design is one of the key strengths of the KMP 250P. The robot is suitable for areas with limited floor space, high equipment density or strict space optimization requirements.
Point-to-Point Transportation
The KMP 250P can perform point-to-point transport tasks between predefined locations within a factory. Repetitive transport routes can be automated, reducing reliance on manual transportation.
Transportation with Optional Lifting Device
When equipped with the optional lifting unit, the KMP 250P can perform tasks requiring goods to be lifted with a 60 mm stroke. This configuration expands the robot's application range in logistics and material handling processes.
Benefits
- Automates the transportation of goods and components within factories.
- Transports payloads of up to 250 kg.
- Compact design for confined production environments.
- Maximum speed of up to 2 m/s.
- Accurate positioning with SLAM and QR.
- Operating time of up to 8 hours.
- Optional inductive charging.
- Optional lifting unit with a 60 mm stroke.
- 360-degree protection using laser scanners and 3D cameras.
- Supports KUKA AMR Fleet and the VDA 5050 interface.
- Available in Cleanroom and ESD versions for specific environments.
