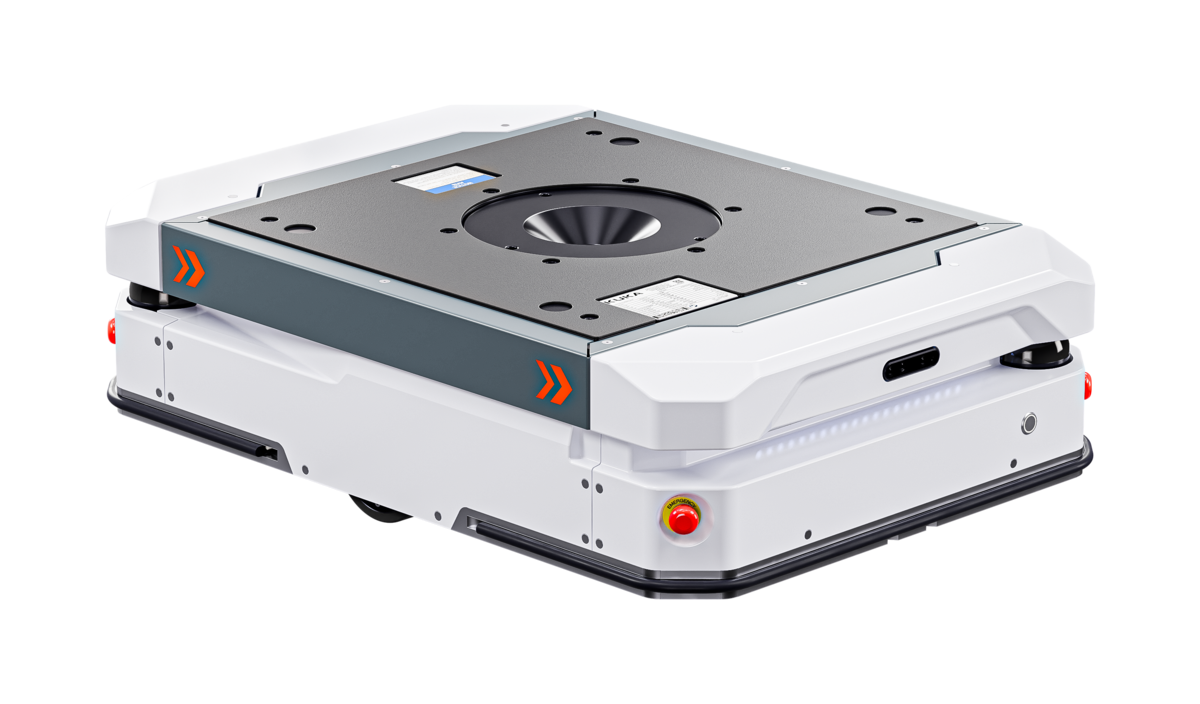

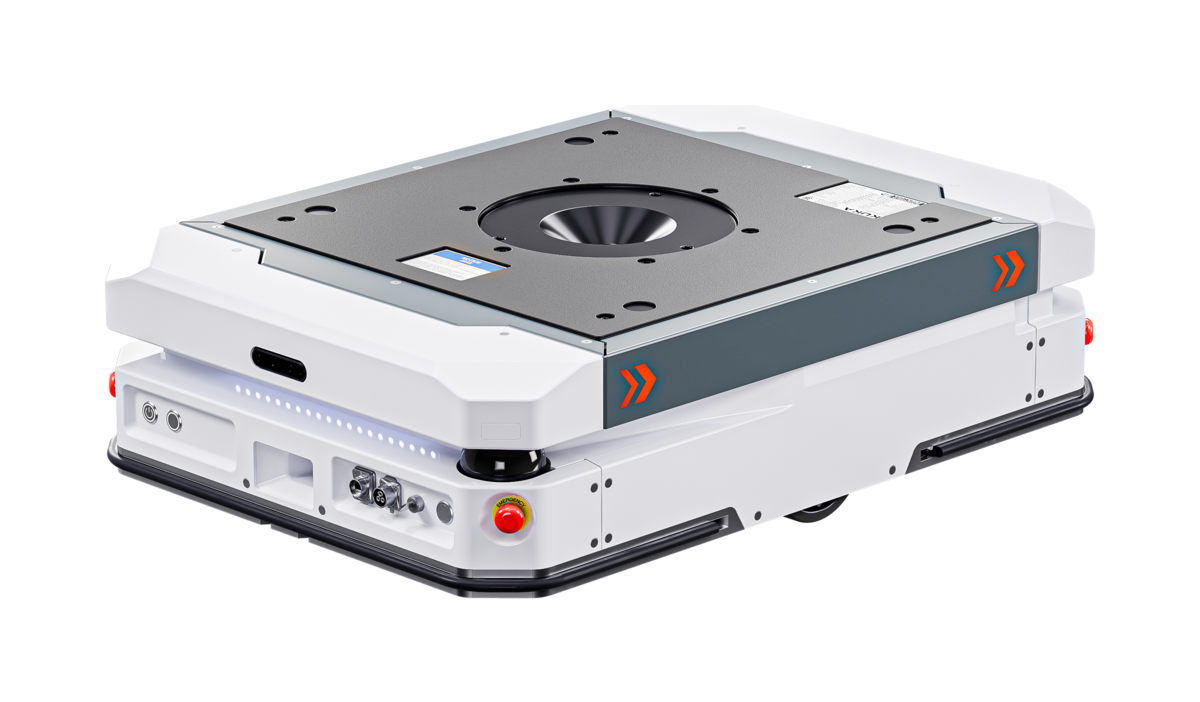

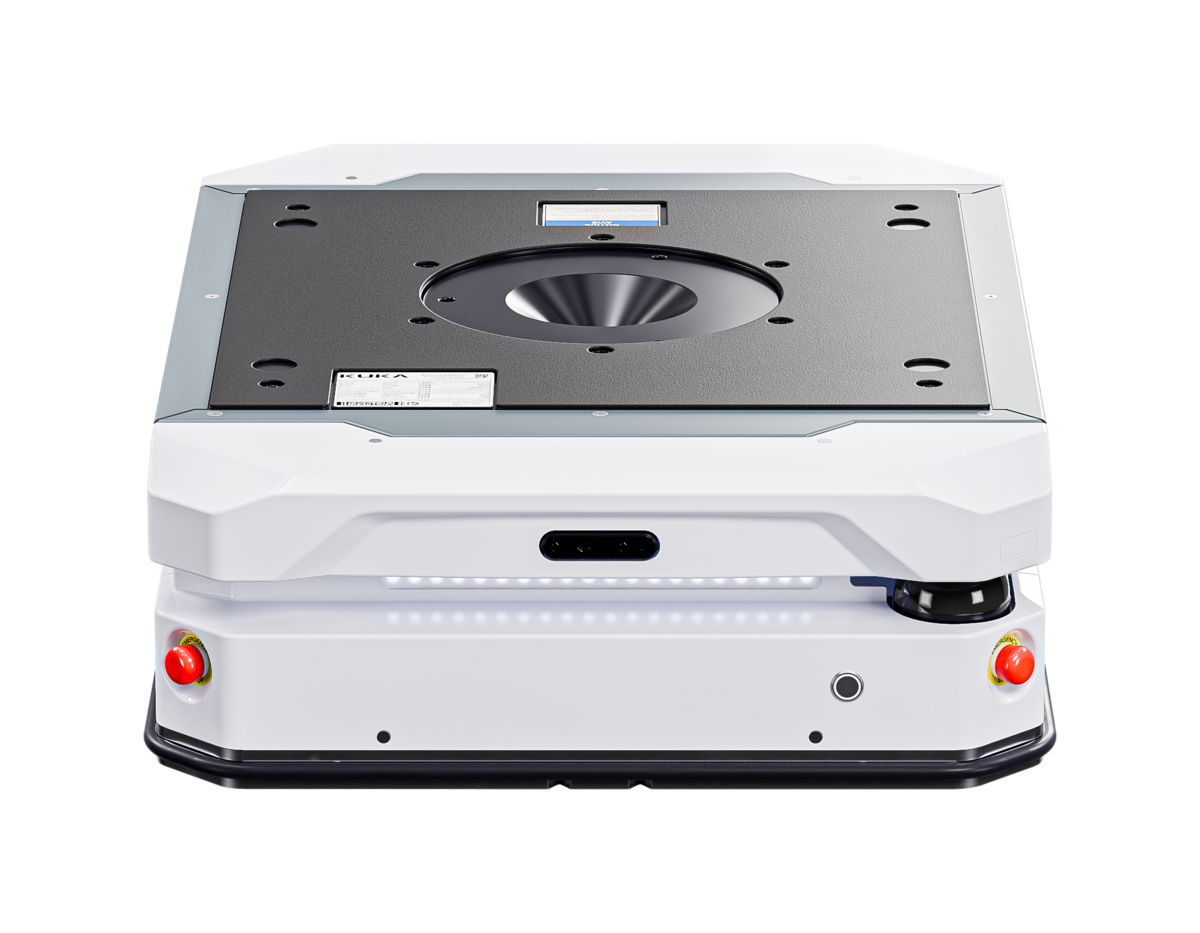

The KUKA KMP 600P-E-D diffDrive baseVersion is an autonomous mobile robot (AMR) designed for transporting goods and materials in production environments. With a payload of up to 600 kg and a compact design, the KMP 600P is particularly suitable for confined production areas.
The KMP 600P is a versatile mobile robot platform that combines high payload capacity with compact dimensions of 980 × 686 × 270 mm. Its compact design allows the robot to make efficient use of available floor space and operate in industrial environments where space optimization is essential.
The robot provides a maximum straight-ahead speed of 2 m/s, positioning accuracy of ±10 mm with SLAM/QR and an operating time of up to 8 hours. An optional integrated lifting device with an 80 mm lift height further expands the robot's capabilities for automated transport and material handling applications.
Applications
- Transporting goods and materials within factories.
- Moving materials between warehouses and production areas.
- Supplying materials to production lines.
- Transporting goods between workstations.
- Transporting components, workpieces and semi-finished products.
- Point-to-point transportation in production environments.
- Applications in confined production areas.
- Automating internal logistics and material flow.
Key Features
Compact Design for Confined Production Environments
The KMP 600P is designed as a compact mobile robot with a payload capacity of up to 600 kg. Measuring 980 × 686 × 270 mm, the robot makes efficient use of floor space and is suitable for production environments where operating space is limited.
Payload of up to 600 kg
The KMP 600P can transport a rated payload of up to 600 kg, supporting internal transportation tasks involving heavier goods and materials. Its high payload capacity makes the robot suitable for a wide range of internal logistics and material supply processes.
Maximum Speed of 2 m/s
The robot reaches a maximum straight-ahead speed of 2 m/s, supporting fast transportation between designated delivery points. The high travel speed helps reduce transportation time and improve internal logistics efficiency.
Flexible Movement with Differential Drive
The KMP 600P uses differential drive technology for flexible movement in production environments. The robot can move forwards and backwards, turn on the spot and follow curves with a defined radius.
Accurate Positioning with SLAM and QR
The KMP 600P supports SLAM and QR-based positioning with an accuracy of ±10 mm. This enables accurate positioning in environments where reliable navigation and repeatable transport operations are required.
Optional Integrated Lifting Device
The KMP 600P can be equipped with an optional integrated lifting device offering an 80 mm lift height, with an 80 mm stroke and 25 mm clearance height. This option expands the robot's capabilities for automated handling and transportation tasks.
Up to 8 Hours of Operation
The KMP 600P provides an operating time of up to 8 hours and a charging time of 2 hours. The robot also supports inductive charging, helping optimize energy management during operation.
Autonomous Navigation and Easy Integration
The KMP 600P is designed for straightforward integration into existing production processes. The robot supports autonomous navigation using SLAM and QR codes and can be connected to KUKA AMR Fleet software for fleet management.
KUKA AMR Fleet provides an intuitive configuration environment that allows transport routes to be created and adjusted without complex programming. Drag-and-drop functionality simplifies task configuration and route optimization.
Safety System
- Laser scanner for obstacle detection and avoidance.
- Two 3D cameras for obstacle detection and protection of the AMR and cargo.
- Safety bumper for enhanced operational safety.
- Acoustic and optical warning signals.
- Emergency stop buttons positioned at the corners of the platform.
Intelligent Energy Management
The KMP 600P is designed for continuous operation with flexible charging options. In addition to conventional charging, the robot supports inductive charging, allowing energy to be supplied during operation without requiring frequent manual connection to a charging station.
Inductive charging supports short charging intervals and contact-free charging, helping maintain continuous robot availability and reduce downtime within internal transportation processes.
Application Solutions
Material Transport in Factories
The KMP 600P can transport raw materials, components and semi-finished products between different areas of a factory. Automating these transportation processes helps create a stable and continuous internal material flow while reducing reliance on manual transportation.
Material Supply to Production Lines
The robot can transport materials from storage areas to production stations according to predefined routes. Automated material supply helps maintain a continuous flow of materials to production lines.
Transportation in Confined Spaces
With its compact design and flexible movement enabled by differential drive technology, the KMP 600P is particularly suitable for production environments with limited floor space or high equipment density.
Point-to-Point Transportation
The KMP 600P is suitable for repetitive transportation between defined locations. By taking over recurring internal transport routes, the robot helps businesses gradually build more automated and efficient internal logistics operations.
Benefits
- Automates the transportation of goods and materials within factories.
- Transports payloads of up to 600 kg.
- Compact design for confined production environments.
- Maximum straight-ahead speed of 2 m/s.
- Positioning accuracy of ±10 mm with SLAM/QR.
- Operating time of up to 8 hours.
- Supports inductive charging for continuous operation.
- Optional integrated lifting device with an 80 mm lift height.
- Reduces reliance on manual transportation.
- Improves internal logistics and material flow efficiency.
