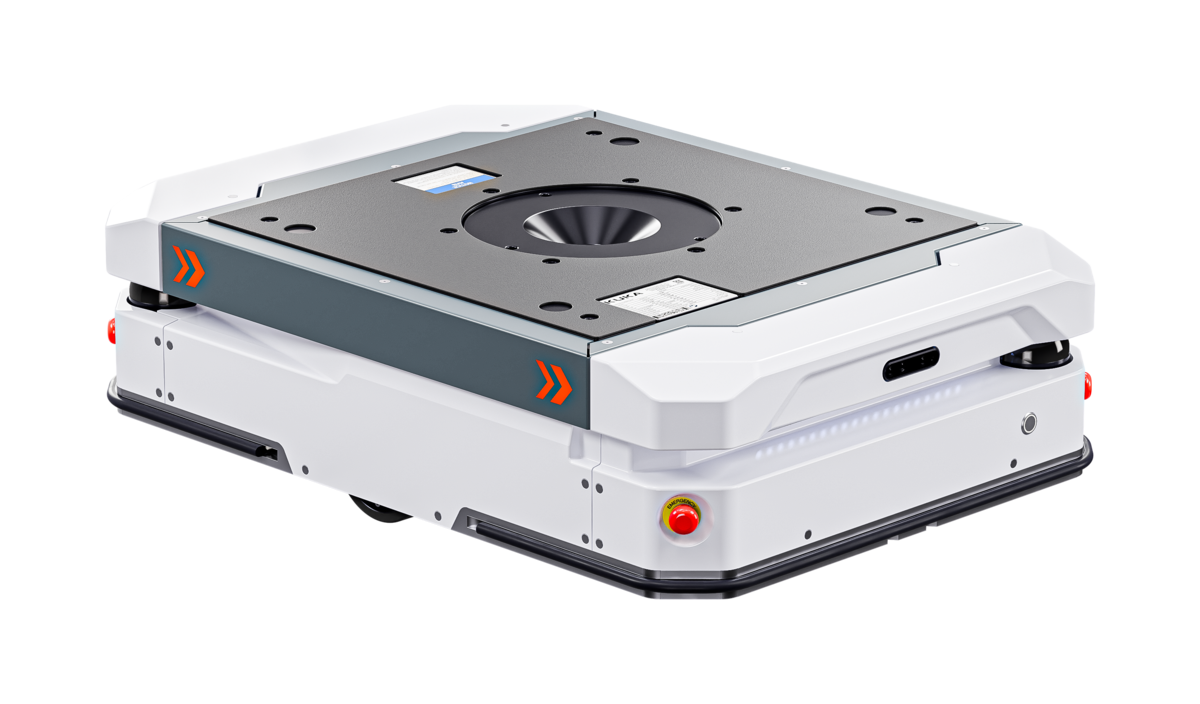

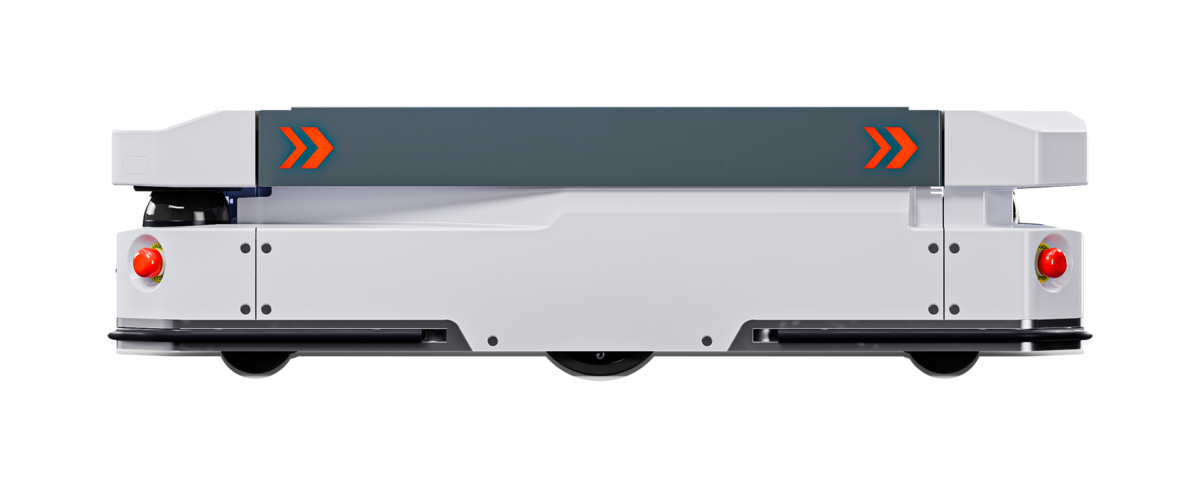

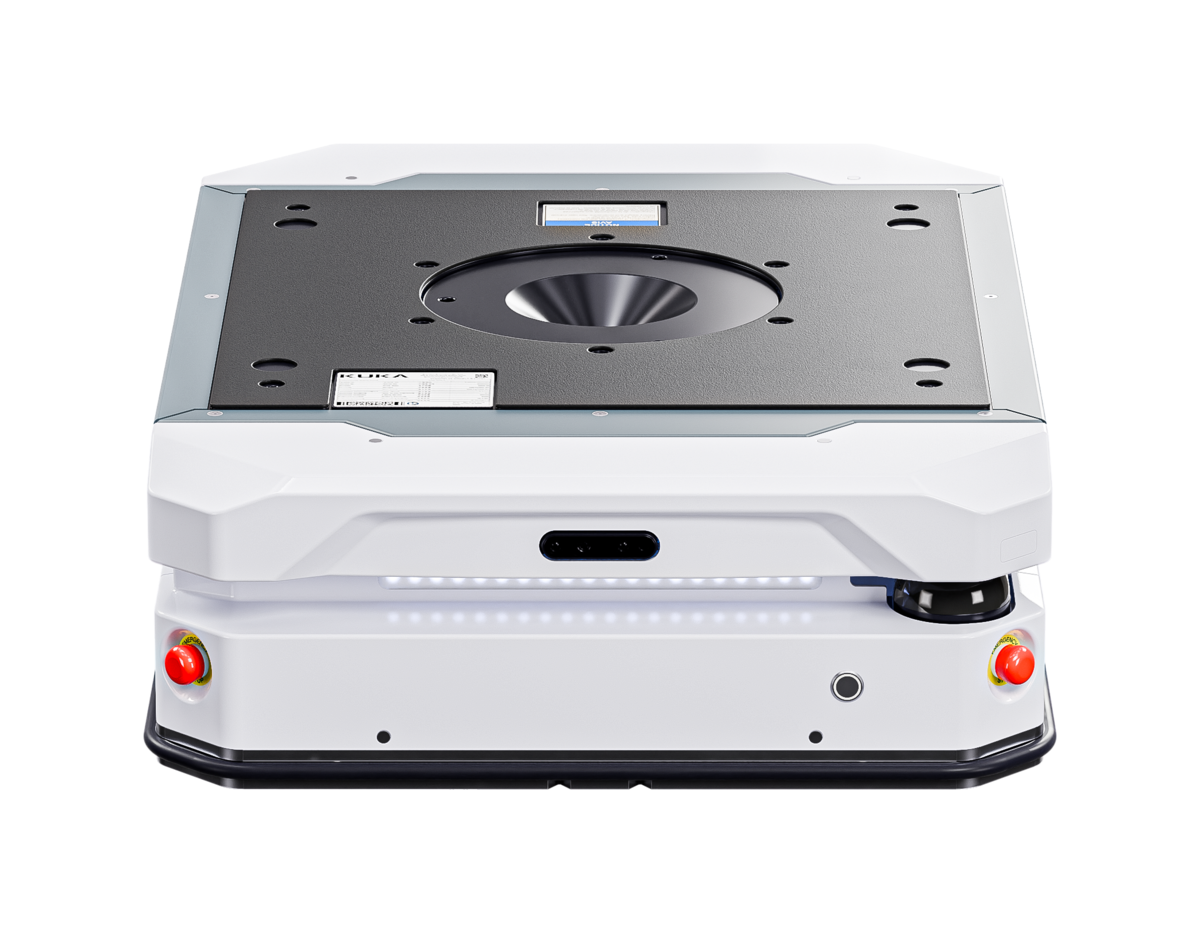

KUKA KMP 600P-EU-D – 600 kg AMR Platform for Automated Material Transport
KUKA KMP 600P-EU-D diffDrive baseVersion is an autonomous mobile robot (AMR) platform designed for automated material and goods transport in production environments. With a rated payload of up to 600 kg, the platform is suitable for automating transport tasks involving relatively heavy loads while maintaining a compact footprint.
Measuring only 980 × 686 × 270 mm, the KMP 600P-EU-D is designed for production areas where available operating space is limited. The platform features differential drive, a maximum speed of 2 m/s and 10 mm positioning accuracy.
Compact Design for Confined Production Areas
One of the key characteristics of the KMP 600P-EU-D is its combination of a compact footprint with a payload capacity of up to 600 kg.
With a length of 980 mm, width of 686 mm and height of 270 mm, the robot can be deployed in areas where space for material-handling equipment is limited. This provides an advantage for manufacturers looking to automate internal logistics without significantly increasing the floor area allocated to transportation systems.
600 kg Payload with 80 mm Lift Height
The KMP 600P-EU-D has a rated payload of up to 600 kg, making it suitable for transporting materials, goods or loads mounted on pallets and application-specific structures, depending on the system design.
The platform provides an 80 mm lift height, supporting material-handling applications where loads need to be raised during automated transport. This lifting capability expands the range of potential applications for the mobile platform.
Flexible Mobility with Differential Drive
The KMP 600P-EU-D uses a differential drive system to provide flexible movement within production environments. With a maximum speed of 2 m/s, the robot can perform transport tasks between different areas of a facility.
With 10 mm positioning accuracy, the platform can perform movement and positioning tasks with the accuracy required for internal logistics operations.
Operation Across Different Environmental Conditions
The KMP 600P-EU-D features an IP54 protection rating according to IEC 60529, making the platform suitable for a range of indoor production environments.
The robot is designed to operate at ambient temperatures from 0 °C to 45 °C and air humidity levels from 10 % to 90 %. During storage or transportation, the device can be kept at temperatures from -20 °C to 50 °C.
The robot has a sound level of 75 dB(A), which is an important specification to consider when evaluating operating conditions within a production area.
LiFePO4 Battery with Up to 8 Hours of Operation
The KMP 600P-EU-D uses a Lithium iron phosphate (LiFePO4) battery and provides a maximum operating time of up to 8 hours.
This battery configuration supports extended transport cycles and is suitable for internal logistics applications where the robot is required to perform multiple transport tasks throughout the working day.
Applications of KUKA KMP 600P-EU-D
With its 600 kg payload, compact dimensions and 80 mm lift height, the KMP 600P-EU-D can be considered for a range of automated transport applications, including:
- Internal material transport within factories.
- Goods transport between production areas.
- Automated material supply to workstations.
- Transport between different production processes.
- Internal logistics automation in space-constrained production areas.
KMP 600P-EU-D – AMR Solution for Internal Logistics
KUKA KMP 600P-EU-D combines a payload of up to 600 kg with a compact design, 80 mm lift height, maximum speed of 2 m/s and operating time of up to 8 hours. With IP54 protection and an operating temperature range of 0 °C to 45 °C, the platform is suitable for various automated transport requirements in production environments.
For businesses looking to automate internal logistics, the KMP 600P-EU-D can be considered as a high-payload AMR platform that maintains a compact footprint, particularly where efficient use of floor space is important.
PAN provides robotics and automation solutions tailored to individual material-handling requirements, from equipment selection to practical implementation consulting.
