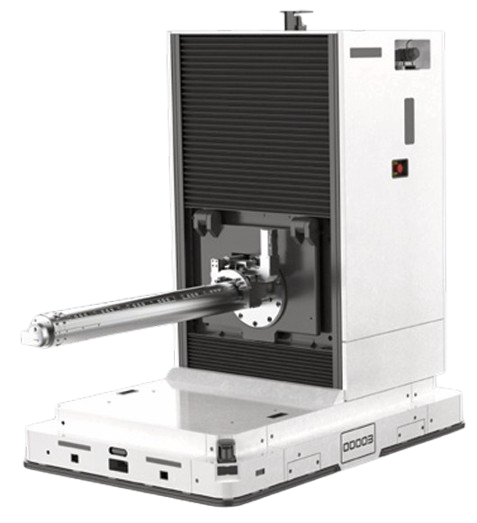

The Hikrobot CMR CHA-800L-A belongs to the Lifting Series, an industrial Autonomous Mobile Robot (AMR) developed on a lifting platform that can be integrated with multiple end-effectors such as rollers, cantilever shafts, grippers, and other customized modules to meet complex material handling requirements in smart factories.
The robot is capable of docking with machines, equipment, and tooling at different heights, depths, and configurations, automating the pickup, lifting, transportation, and delivery of materials throughout the manufacturing process.
The Hikrobot CHA-800L-A features a rated payload of 800 kg, equipped with a 6-inch cantilever shaft and a pickup height ranging from 760 mm to 1410 mm. It supports both 2D Barcode and L-SLAM navigation while offering omnidirectional movement and 360° on-the-spot rotation.
With ±2 mm docking accuracy, a comprehensive multi-layer safety protection system, and flexible integration with production equipment, the CHA-800L-A is ideal for transporting heavy material rolls, automated material feeding, machine docking, and internal logistics in industrial production lines.
Typical Applications
Buffer Rack Docking
The robot automatically docks with buffer racks or transfer stations to receive and deliver materials between production processes, optimizing internal material flow.
Direct Machine Docking
The robot performs high-precision docking with manufacturing equipment, automating material loading, unloading, and inter-process transportation.
Cantilever Shaft for Material Roll Handling
The integrated cantilever shaft enables automatic pickup, lifting, and transportation of heavy material rolls while ensuring precise docking with storage racks and roll-handling equipment.
Key Features
Flexible End-Effector Integration
-
Supports multiple end-effectors including cantilever shafts, push mechanisms, tension mechanisms, and sliding assemblies, meeting a wide range of material handling requirements.
-
Customizable cantilever shafts are available to accommodate different material characteristics and application requirements.
-
Supports custom docking heights for compatibility with various production machines and equipment.
Safe and Stable Robot Platform
-
Multi-layer safety protection includes a 360° laser obstacle avoidance system integrated into the chassis together with overhead 3D sensors.
-
Stable operation with a maximum travel speed of 1.0 m/s.
High-Precision Navigation & Positioning
-
Supports high-precision navigation using 2D Barcode, L-SLAM, and V-SLAM.
-
Secondary positioning provides docking accuracy of up to ±2 mm.
Wireless Connectivity & Manual Operation
-
Supports Wi-Fi and 5G connectivity for flexible operation and communication.
-
Supports both wireless mobile applications and wired handheld controllers for manual operation when required.
