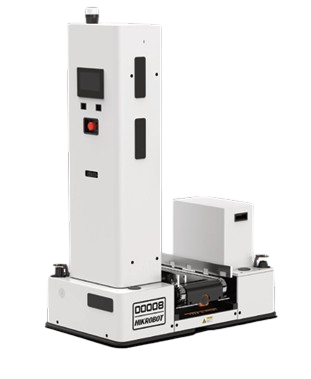

The Hikrobot CMR CHS1-50L is part of the SMT Series, specifically developed for transporting PCB boxes and trays in 3C electronics manufacturing and automated SMT production lines.
The SMT Series is engineered to accommodate various production line heights, carrier sizes, and docking accuracy requirements. The robot integrates a lifting mechanism, tray/box width adjustment mechanism, and a secondary positioning camera system, enabling highly accurate docking with production equipment.
With a rated payload of 50 kg, the Hikrobot CHS1-50L utilizes an SMT tray conveyor mechanism and supports both 2D Barcode and L-SLAM navigation. The robot features omnidirectional movement and 360° on-the-spot rotation for maximum flexibility in compact manufacturing environments.
Offering docking accuracy of up to ±2.5 mm, together with laser safety sensors, binocular vision, and comprehensive safety features, the CHS1-50L is an ideal solution for material feeding, PCB tray collection, PCB transportation, and automated material flow management in SMT production lines.
Typical Applications
Line-Side Material Pickup
The robot automatically travels to production stations to receive PCB trays or boxes directly from manufacturing equipment, reducing manual handling and improving production continuity.
Line-Side Material Delivery
The robot automatically lifts and docks with designated loading stations, delivering materials, trays, and PCB boxes with high positioning accuracy.
Key Features
Comprehensive Safety Protection
-
Equipped with diagonally positioned laser safety scanners providing 360° active obstacle detection.
-
Integrated front and rear bumper strips provide 360° physical collision protection.
-
Front-mounted binocular camera enables 3D obstacle recognition along the robot's travel direction.
-
Integrated safety components include an emergency stop button and audio-visual warning system.
-
Optional accessories include ground-clearance sensors, recording devices, and additional binocular vision sensors.
Robot Body Design
-
Omnidirectional chassis supports forward, backward, lateral movement, and 360° on-the-spot rotation.
-
The upper module integrates a lifting mechanism, tray width adjustment mechanism, and conveyor system.
-
Equipped with a high-precision secondary positioning smart camera.
Navigation & Positioning
-
Supports both L-SLAM and V-SLAM navigation technologies for high-precision positioning.
-
Secondary positioning provides docking accuracy of up to ±2.5 mm.
Easy Maintenance
-
Compact design and optimized weight simplify manual maintenance operations.
-
Supports dedicated robot transport equipment for quick relocation during maintenance.
Power System
-
Equipped with a 48 V / 24 Ah battery.
-
Provides 8–10 hours of continuous operation under standard working conditions.
