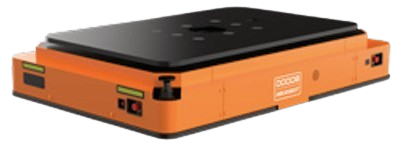

The Hikrobot HMR H9-3000B belongs to the
Heavy-Duty Mobile Robot (HMR) – Heavy-Duty Lifting Series,
designed for heavy-duty lifting, transportation and material transfer
applications in manufacturing facilities and automated logistics systems.
The heavy-duty lifting robot can dock with production lines, machinery and equipment
to automatically receive and transport carriers, component assemblies and
medium- to large-sized materials. It is suitable for industries such as
lithium battery manufacturing, photovoltaics, automotive, mechanical manufacturing
and construction machinery.
The Hikrobot H9-3000B has a rated load capacity of up to
3000 kg, featuring a single hydraulic lifting mechanism
with a 100 mm lifting stroke and a lifting platform measuring
1700 × 1100 mm. The robot supports
QR Code, L-SLAM and V-SLAM navigation.
With omnidirectional movement, a rated travel speed of
1200 mm/s and a 360° laser protection system,
the H9-3000B is well suited for point-to-point transportation,
heavy-load material transfer and automated intralogistics in smart factories.
Typical Applications
Point-to-Point Transportation
The robot automatically transports materials, component assemblies,
fixtures and heavy-load structures between designated locations within the factory,
reducing reliance on manual transportation equipment.
Transportation for PACK Battery Assembly and Inspection
The robot can transport battery assemblies, PACK units, fixtures and materials
between assembly, inspection and finishing processes in lithium battery production lines.
Transportation of Large Materials and Components
With a rated load capacity of up to 3000 kg and an integrated hydraulic lifting mechanism,
the robot is suitable for transporting fixtures, component assemblies, long materials
and large-sized structures in the automotive, photovoltaic and heavy industrial sectors.
Key Features
Wide Load Capacity Range
-
Supports a wide load capacity range from 0 to 10 tons,
meeting diverse heavy-duty material transportation requirements in industrial environments.
-
Supports multiple navigation methods, including
2D barcode, L-SLAM, V-SLAM and magnetic guide navigation.
High Operating Performance
-
Maximum travel speed of up to 1.2 m/s,
supporting efficient transportation in manufacturing environments.
-
Supports flexible switching between
multi-robot coordination and
independent robot operation.
Versatile Solution Portfolio
-
Can be configured with single or double lifting mechanisms
according to the size and weight of the load being transported.
-
Applications include models for lithium battery PACK production lines,
silicon wafer and silicon material transportation in the photovoltaic industry,
stamping, welding and assembly lines in the automotive industry,
as well as logistics systems for the construction machinery industry.
-
Core components are developed in-house, supporting customization of
mechanical structure, hardware and software
according to project requirements.
-
Supports the open data interface XML/ROBTX,
facilitating functional configuration, system integration and secondary development.
PAN Trading JSC – Robotic Solutions for Smart Factories
PAN Trading JSC provides robotic automation solutions for factories and logistics systems,
including autonomous lifting robots and industrial automation systems.
Our services include:
- Consultation on suitable robotic solutions
- Equipment demonstrations
- System implementation
- Maintenance and technical support
