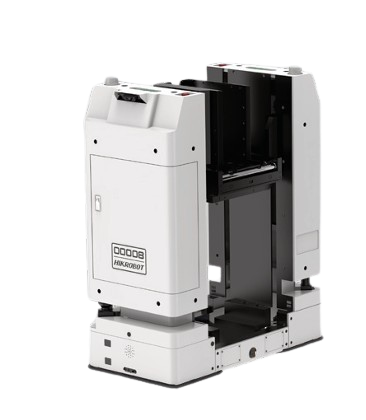

The Hikrobot CMR CHU1-30L belongs to the SMT Series, specifically developed for transporting PCB storage boxes in 3C electronics manufacturing and automated SMT production lines.
The robot is designed to accommodate different production line heights, storage box dimensions, and docking accuracy requirements. It integrates a box lifting mechanism, box width adjustment mechanism, and a secondary positioning camera system, ensuring precise docking with production equipment.
With a rated payload of 30 kg, the Hikrobot CHU1-30L utilizes a dedicated SMT tray conveyor mechanism and supports both 2D Barcode and L-SLAM navigation. The robot features omnidirectional movement and 360° on-the-spot rotation, making it ideal for space-constrained production environments.
Featuring docking accuracy of up to ±2.5 mm, together with laser sensors, binocular cameras, ultrasonic sensors, and a flexible lifting mechanism, the CHU1-30L is an ideal solution for material feeding, PCB tray collection, and automated material transportation throughout SMT production lines.
Typical Applications
Material Pickup and Delivery on Production Lines
The robot automatically travels to designated production stations to receive or deliver PCB boxes and production materials between manufacturing processes.
PCB Box Transportation Between SMT Stations
The robot automatically transports PCB storage boxes between SMT equipment and production workstations, reducing manual handling while improving production continuity.
Key Features
Comprehensive Safety Protection
-
Equipped with diagonally mounted laser safety scanners providing 360° active obstacle detection.
-
Front and rear bumper strips provide 360° physical collision protection.
-
Front-mounted Hikrobot-developed binocular camera provides 3D environment perception along the robot's travel path.
-
Integrated safety devices include an emergency stop button and audio-visual warning system.
-
Optional accessories include ground-clearance sensors, recording devices, and additional binocular vision sensors.
Robot Body Design
-
Omnidirectional chassis supports forward, backward, lateral movement, and 360° on-the-spot rotation.
-
The upper module integrates a lifting mechanism, box width adjustment mechanism, and conveyor system.
-
Equipped with a high-precision secondary positioning smart camera.
Navigation & Positioning
-
Supports high-precision L-SLAM and V-SLAM navigation technologies.
-
Secondary positioning provides docking accuracy of up to ±2.5 mm.
Easy Maintenance
-
Compact design and optimized weight simplify routine maintenance operations.
-
Compatible with dedicated robot transport equipment for quick relocation during maintenance.
Power System
-
Equipped with a 48 V / 24 Ah battery.
-
Provides 8–10 hours of continuous operation under standard working conditions.
